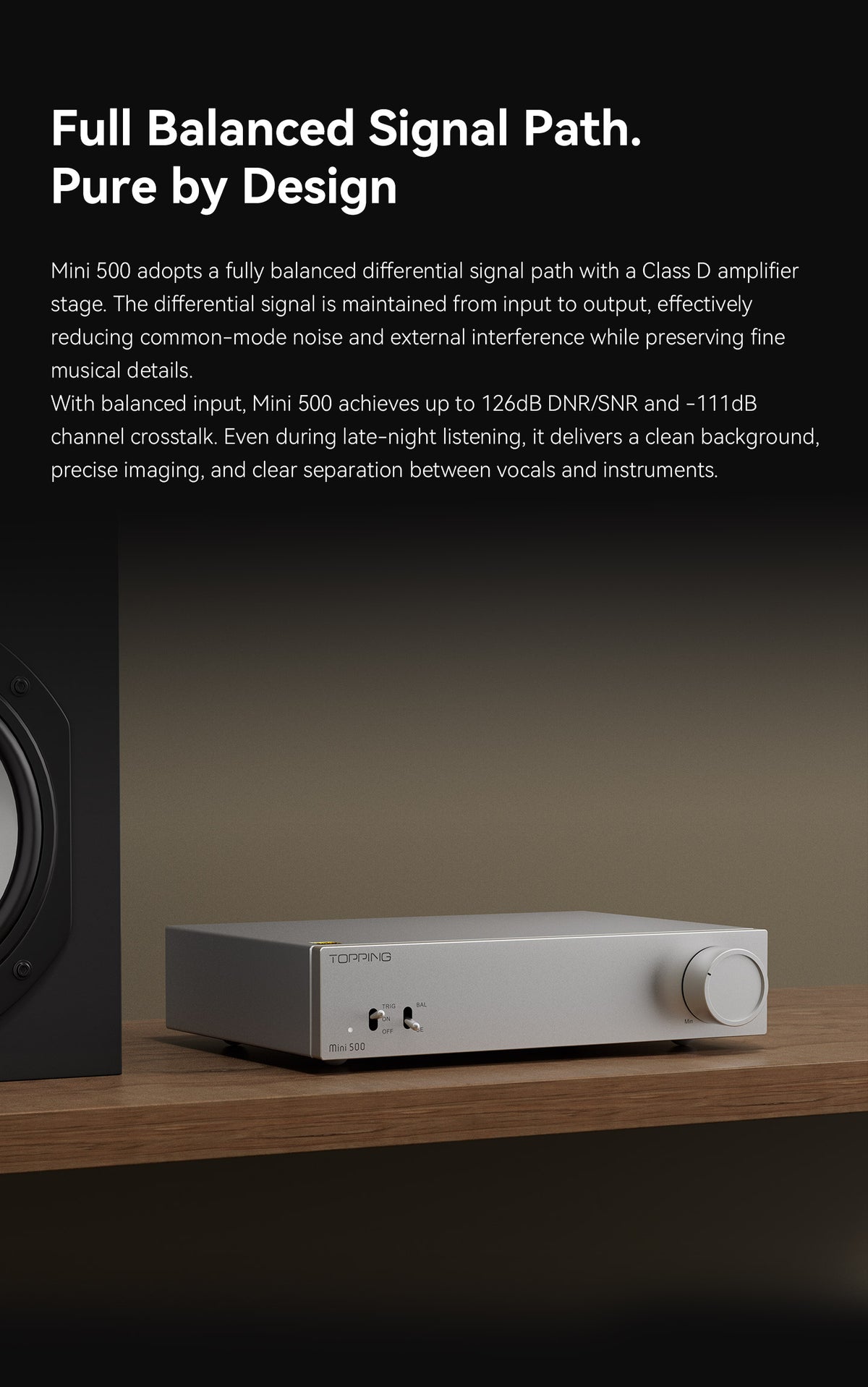

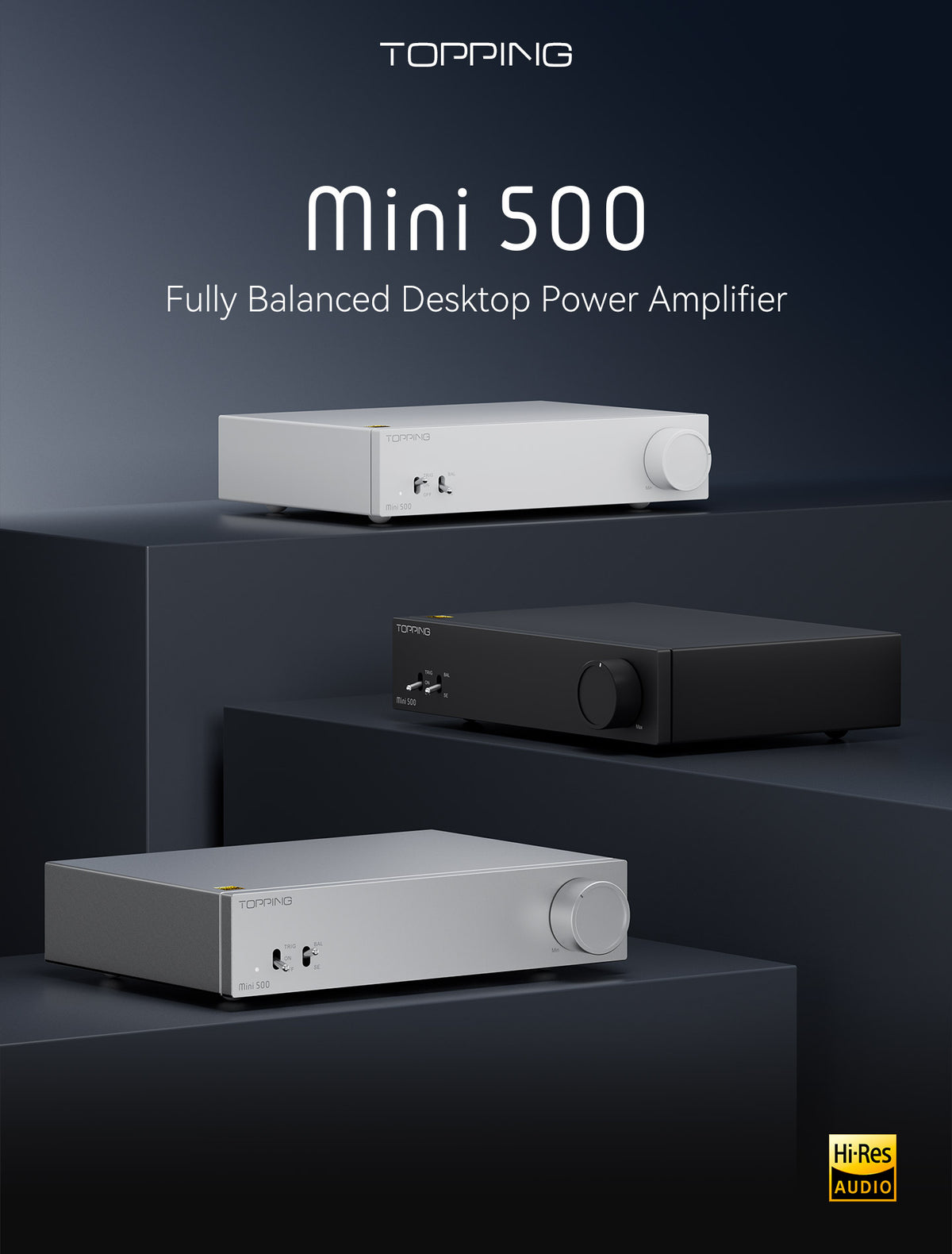

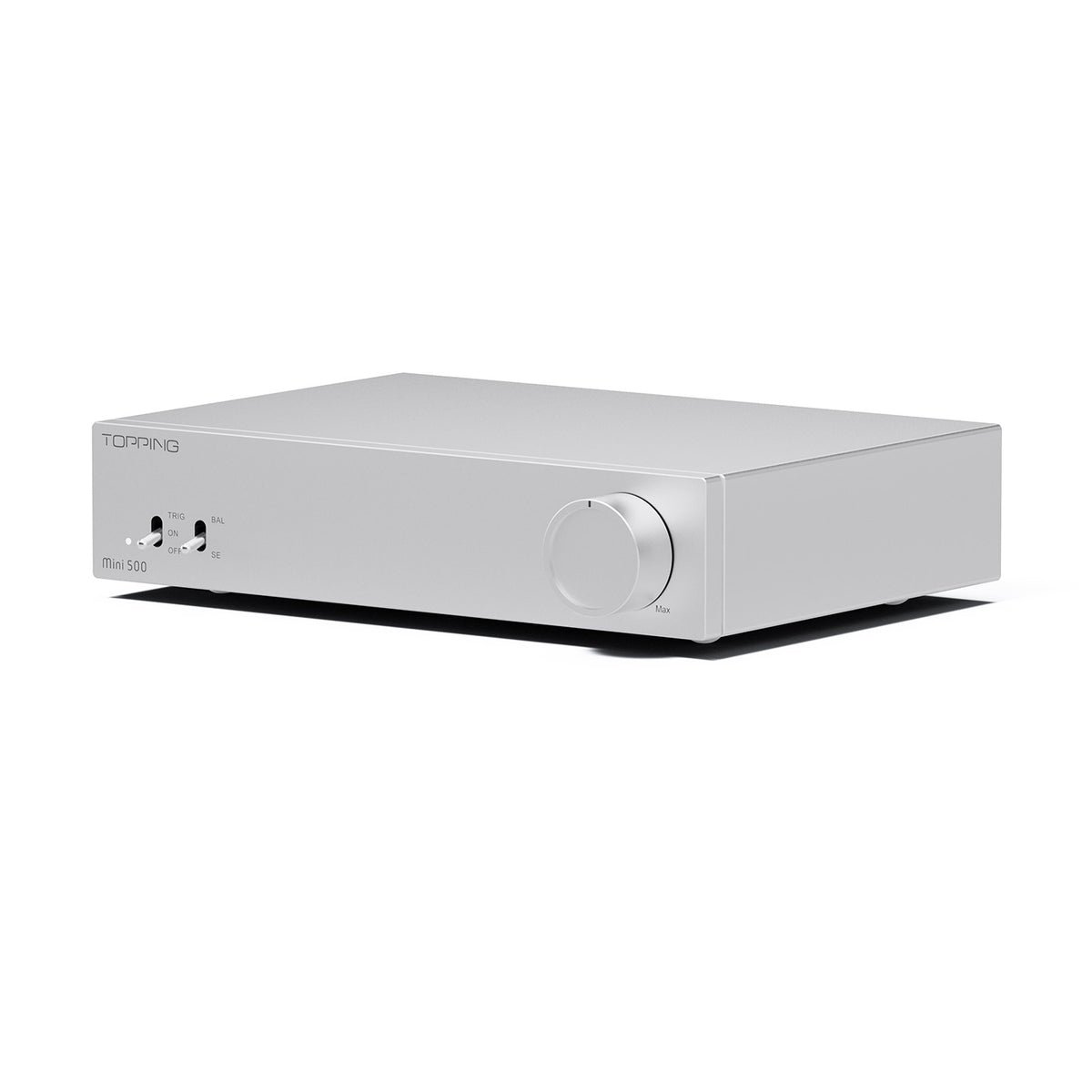

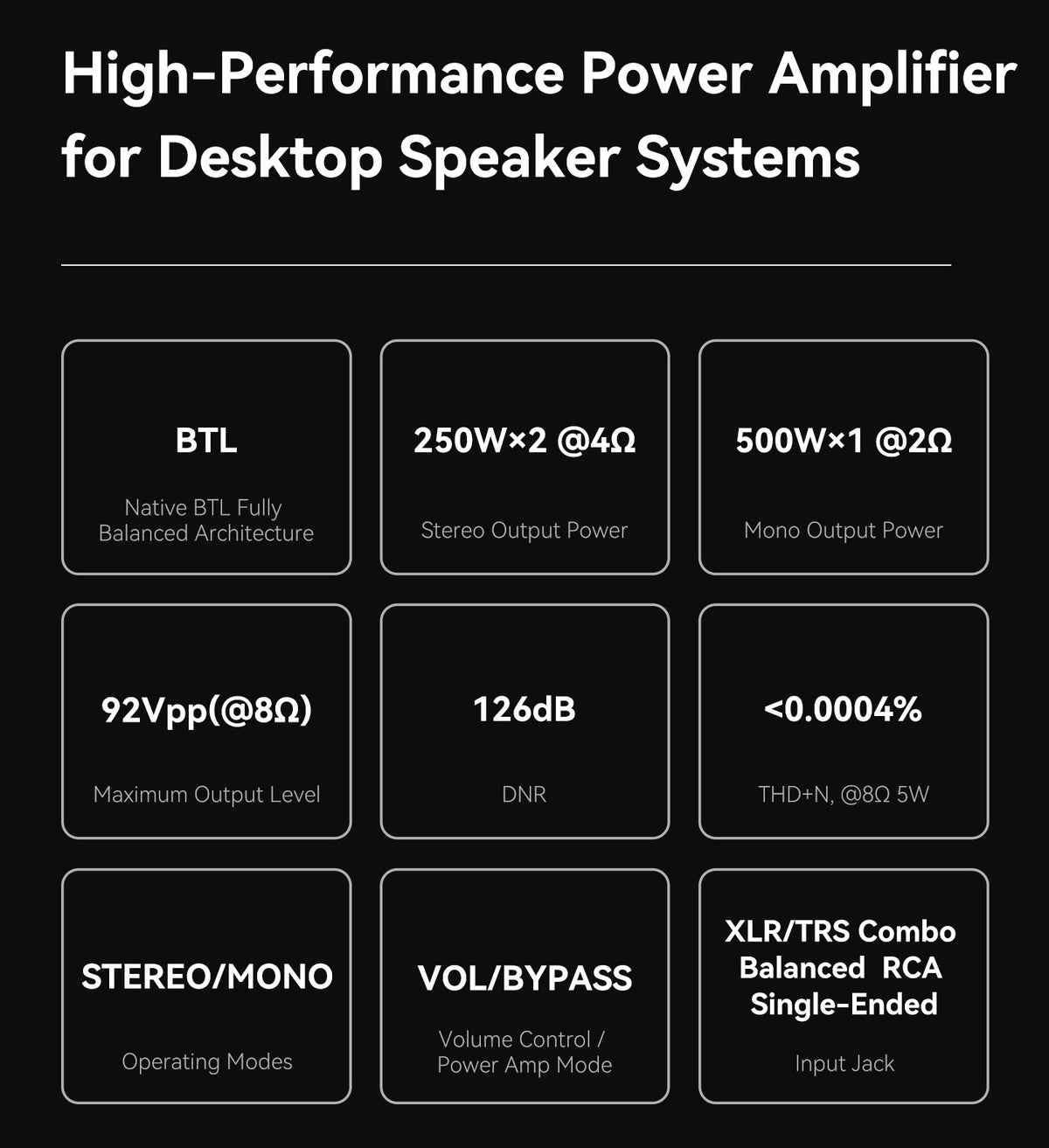

FULLY BALANCED DESIGN, EXCEPTIONAL CLARITY - The TOPPING Mini 500 features a fully balanced differential signal path and Class D amplification to help reduce common-mode noise and external interference. With balanced input, it achieves up to 126dB DNR/SNR and -111dB channel crosstalk, delivering a clean background, precise imaging, and clear separation between vocals and instruments.

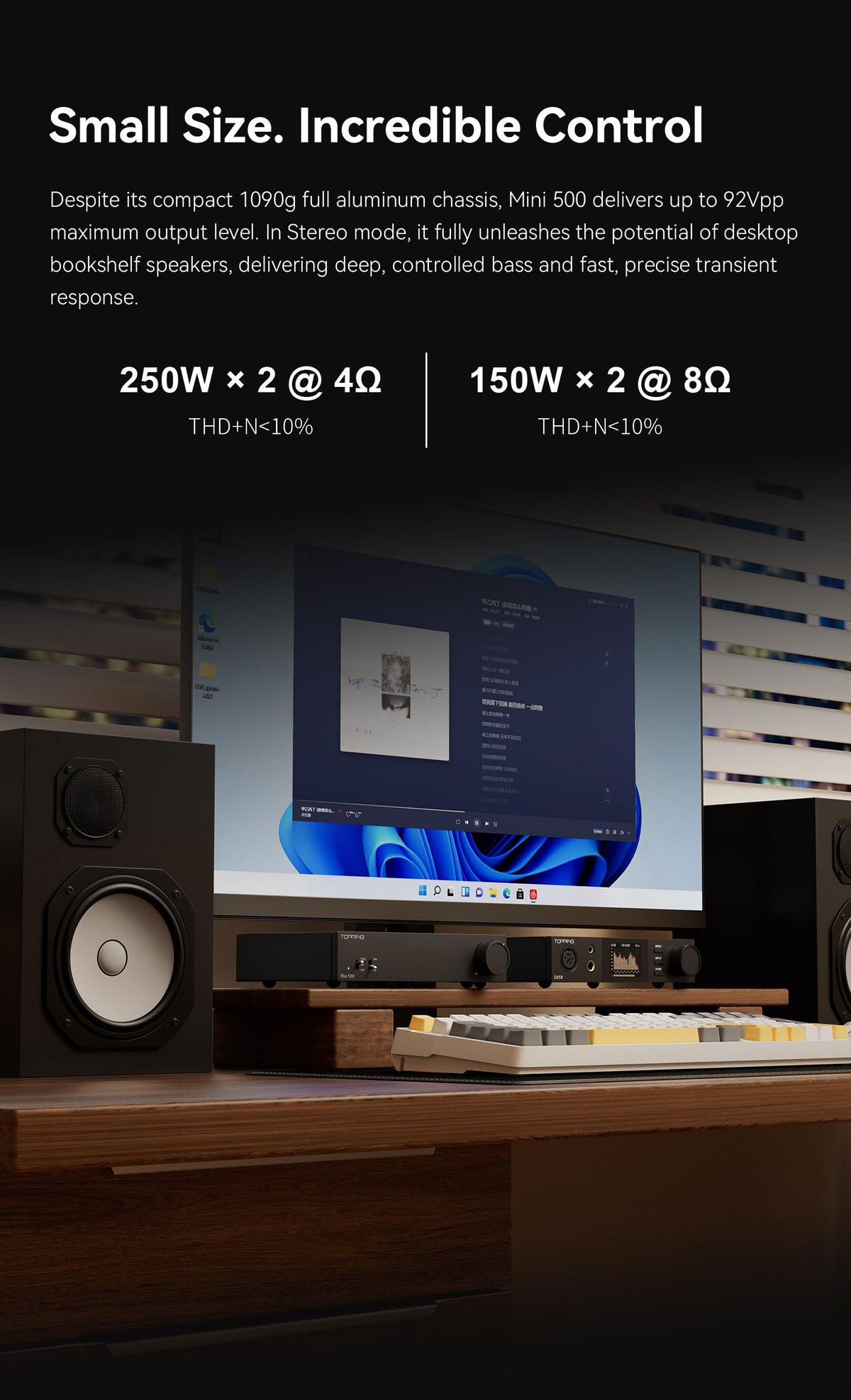

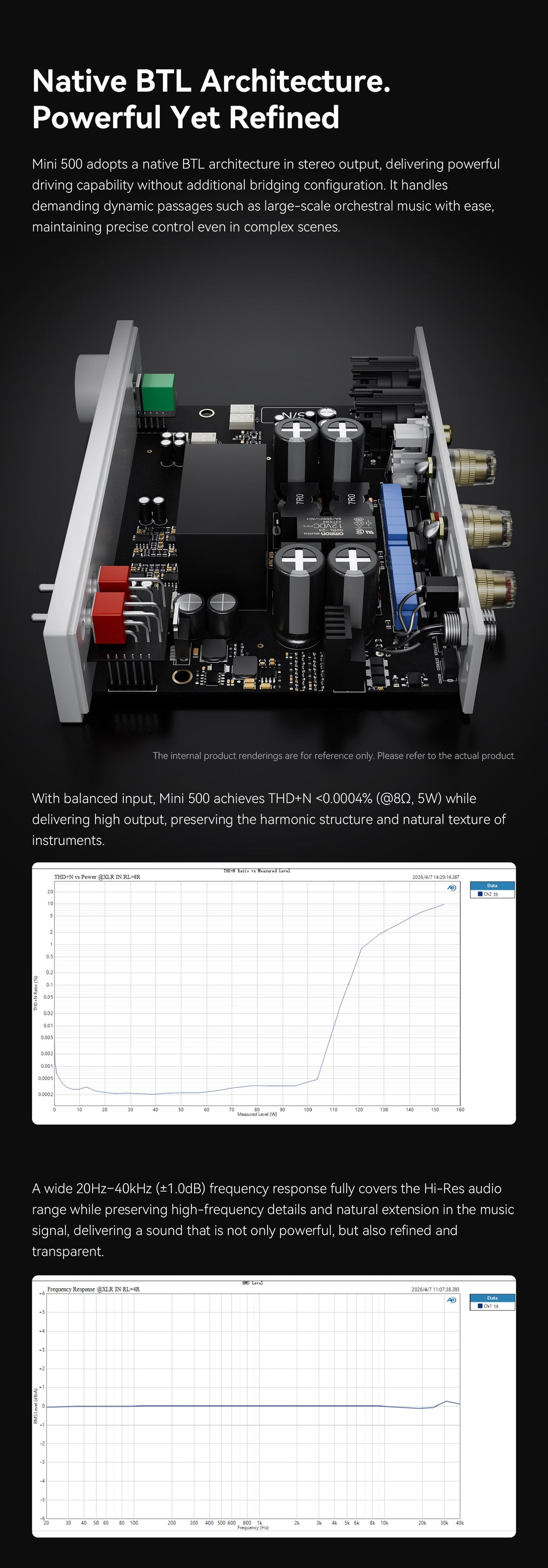

250W x 2 STEREO POWER FOR DESKTOP SPEAKERS - Experience dynamic, controlled sound with 250W x 2 at 4Ω and 150W x 2 at 8Ω (THD+N<10%). The native BTL architecture provides strong driving capability, helping compatible passive bookshelf speakers deliver impactful bass, fast transients, and confident musical dynamics.

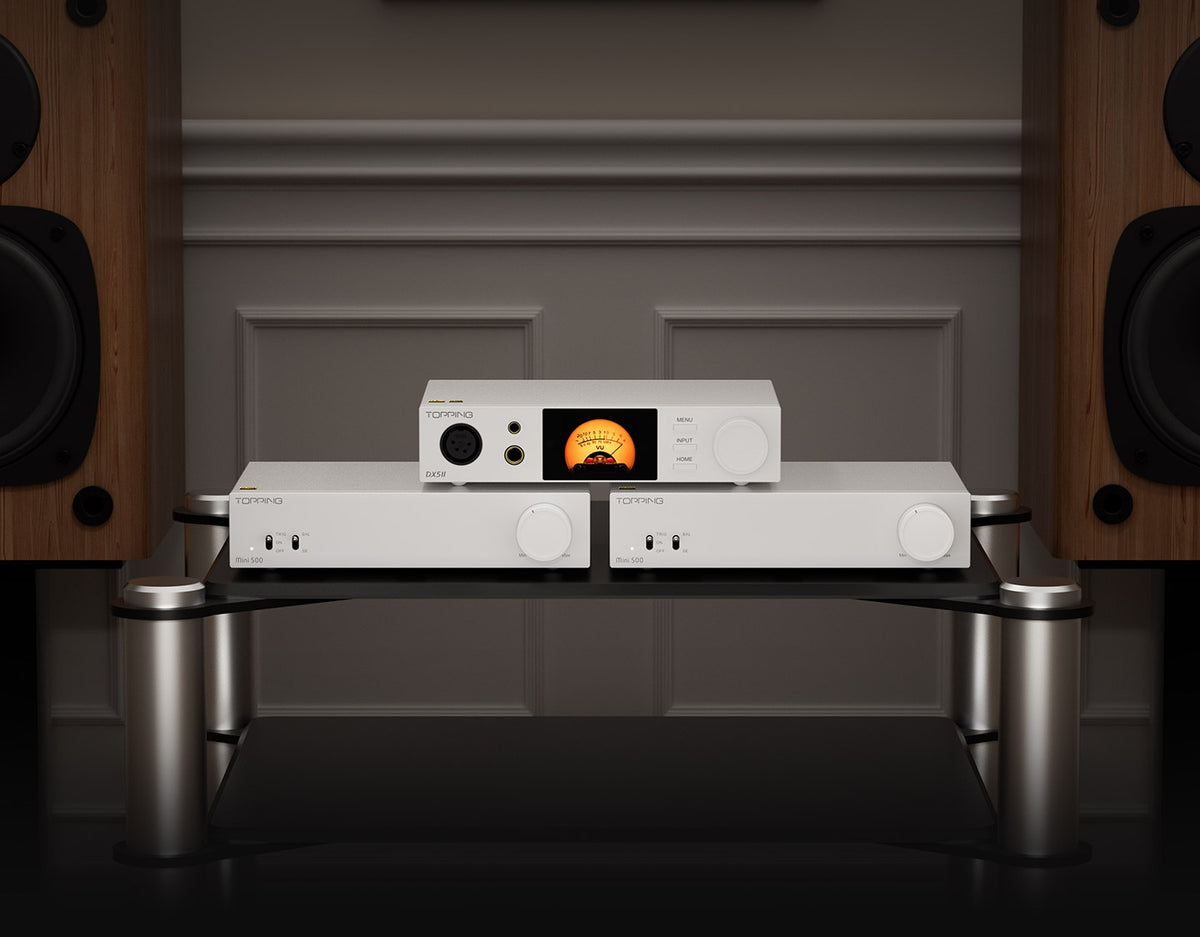

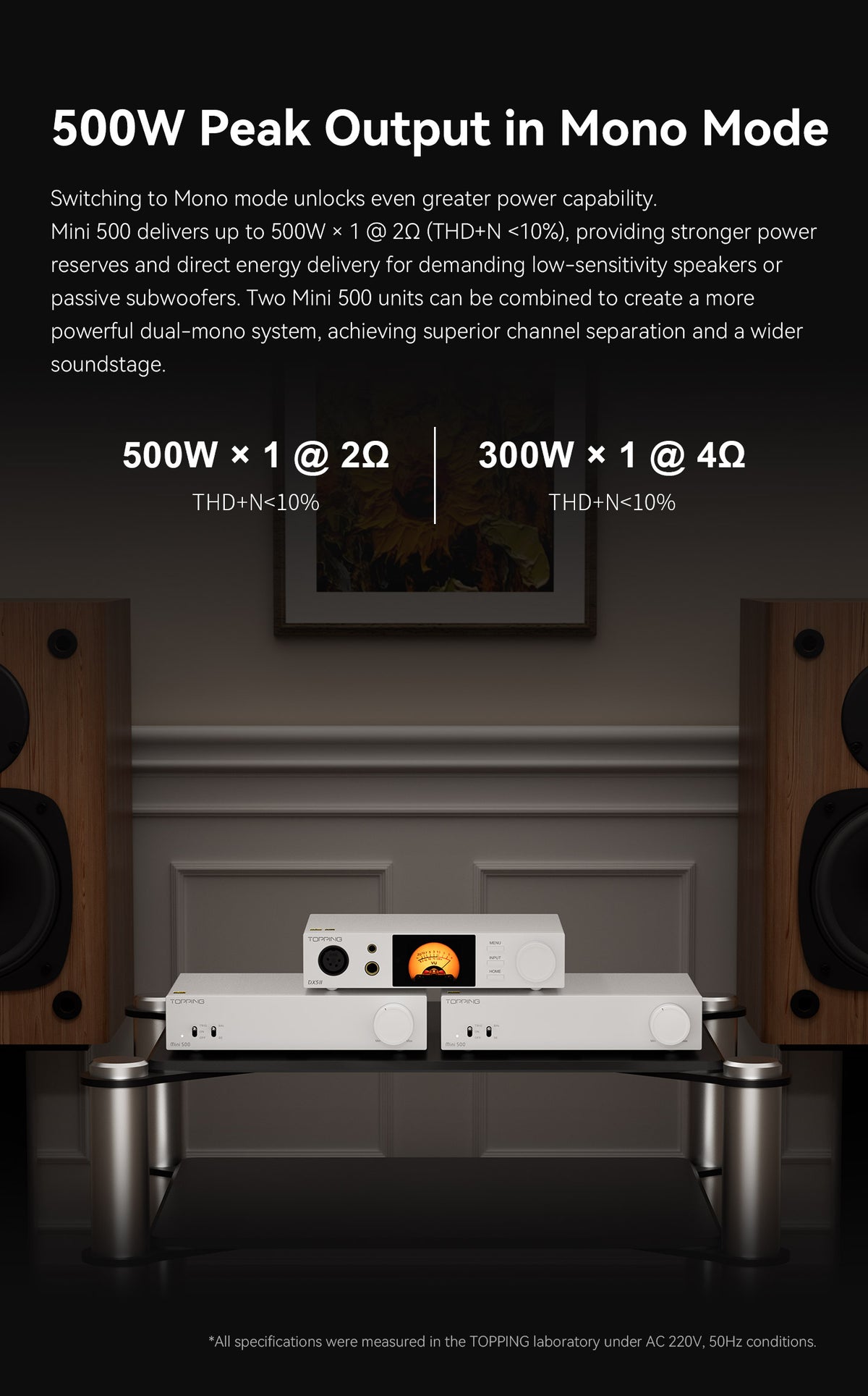

SWITCH TO MONO FOR UP TO 500W OUTPUT - Change from Stereo to Mono mode to unlock up to 500W at 2Ω or 300W at 4Ω (THD+N <10%). Ideal for compatible demanding speaker loads and selected passive subwoofer applications. Pair two Mini 500 units in Mono mode for a dual-mono system with greater system flexibility and channel separation.

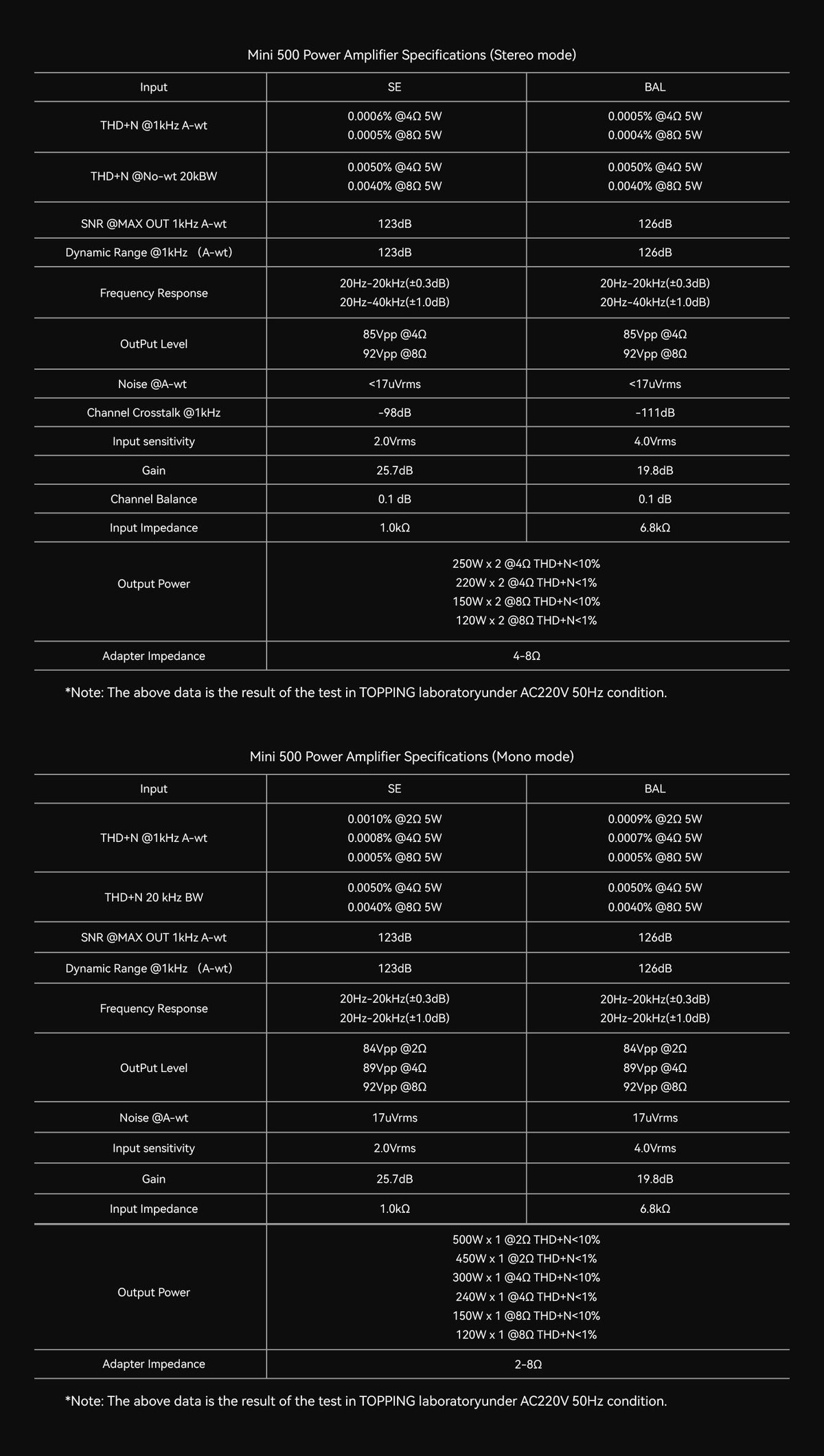

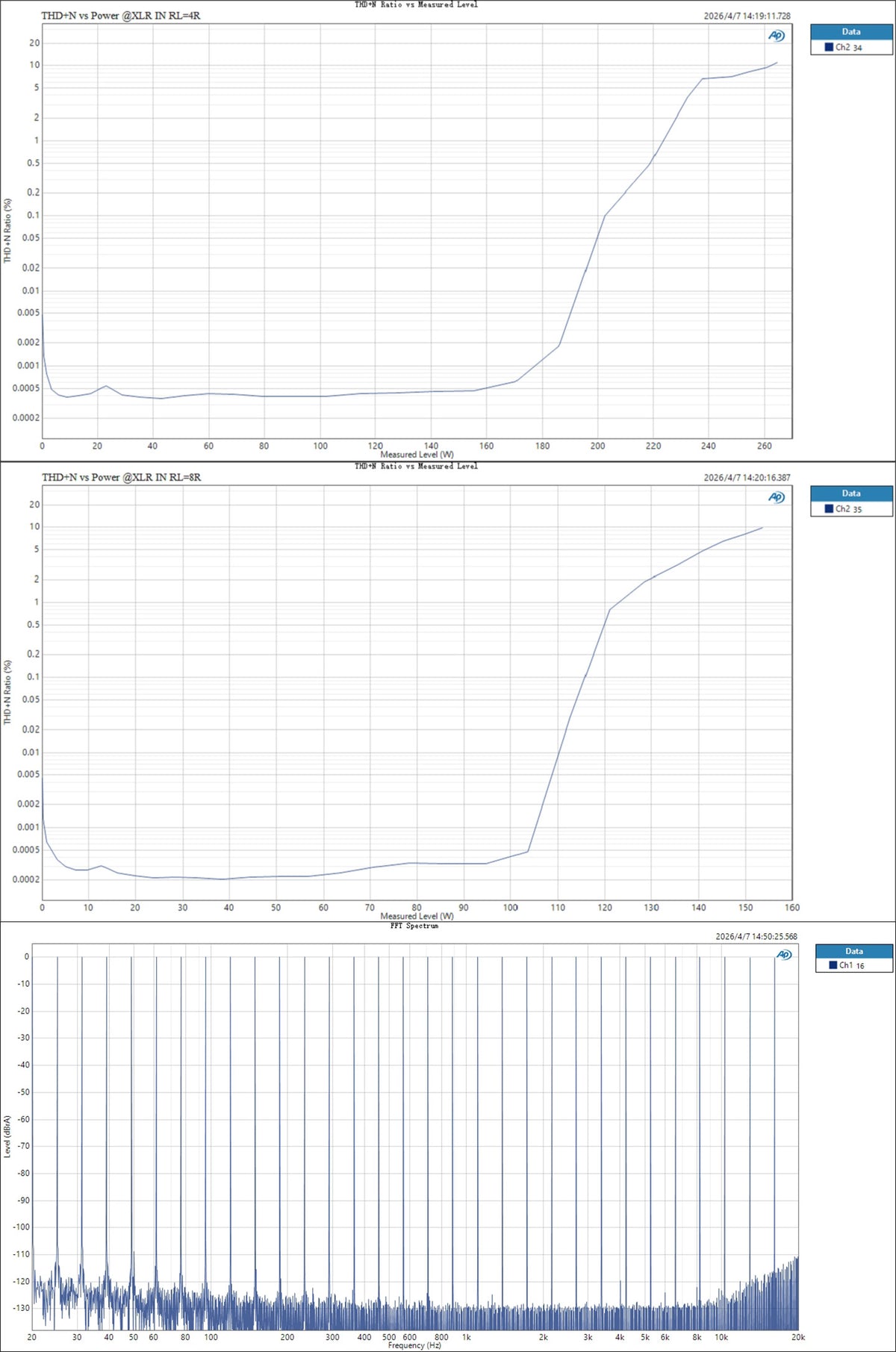

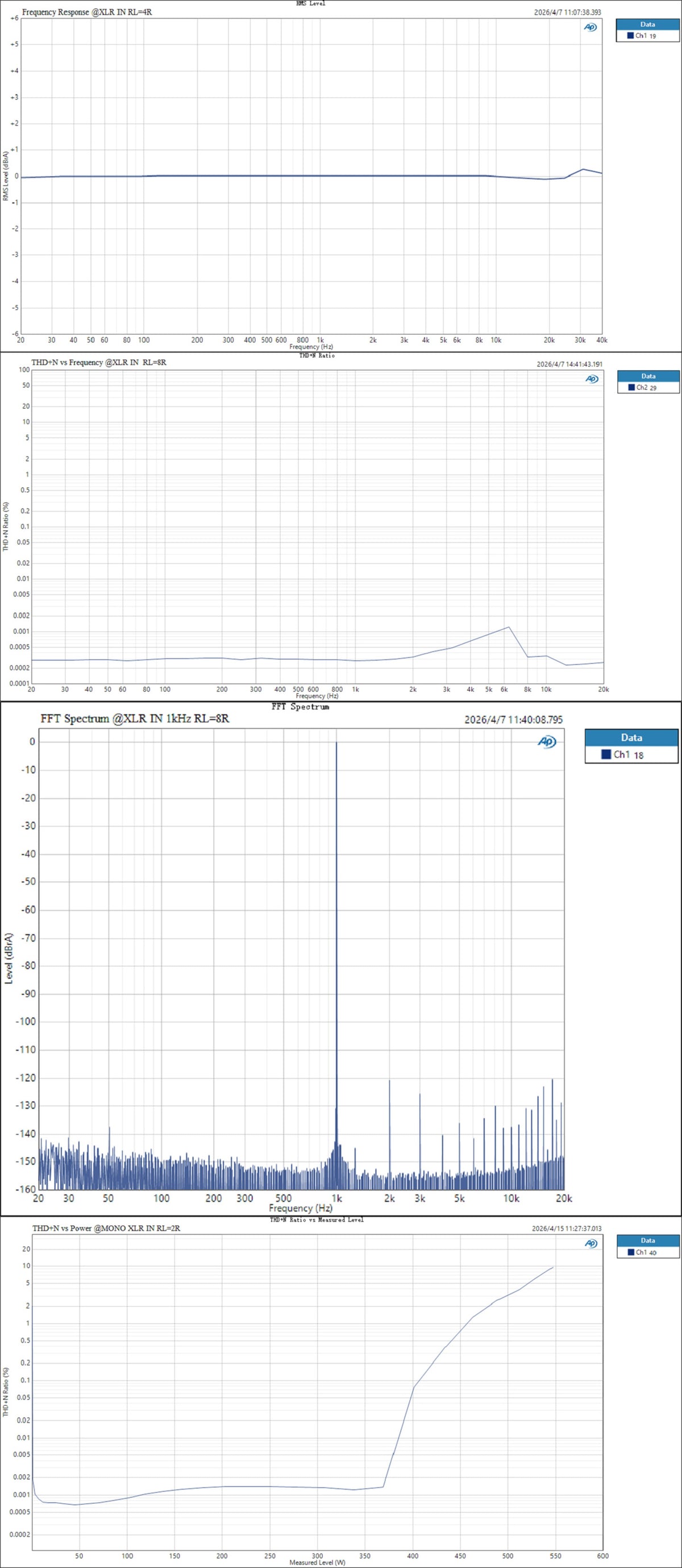

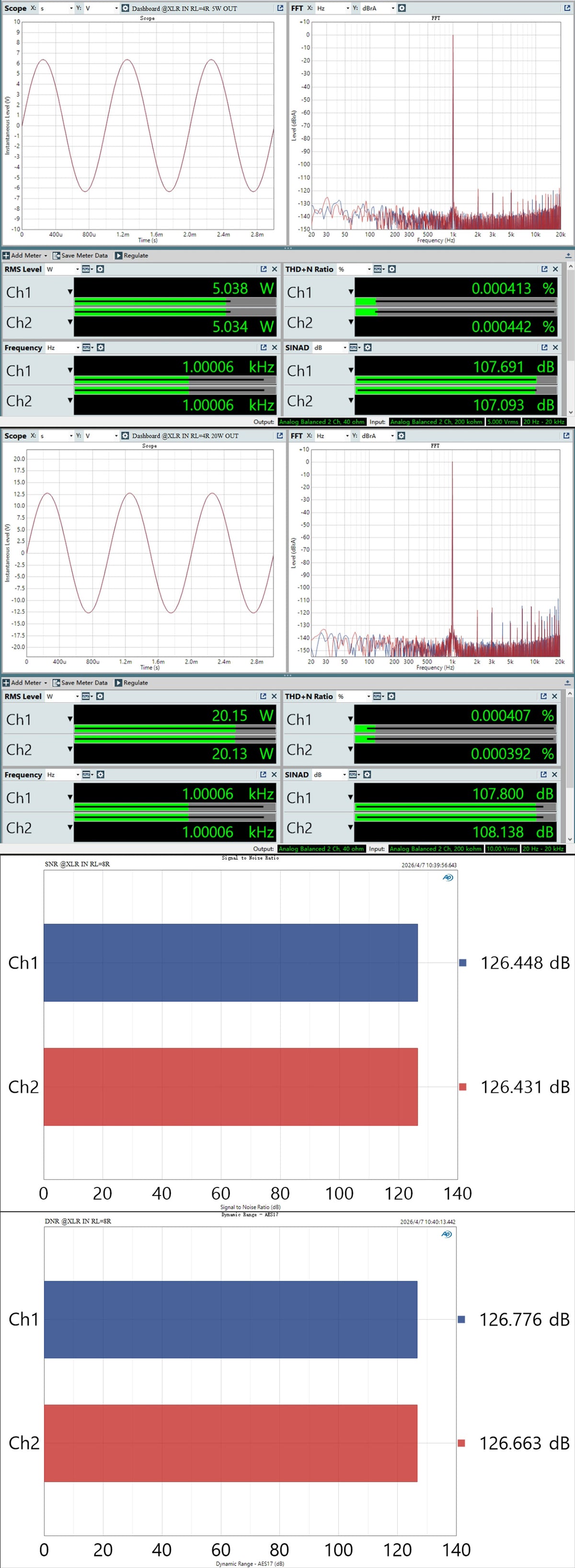

ULTRA-LOW DISTORTION, DETAILED SOUND - With balanced input, the Mini 500 achieves THD+N below 0.0004% at 8Ω and 5W, helping preserve subtle musical details and the natural character of instruments. Its 20Hz–40kHz (+1.0dB) frequency response supports full-range music reproduction, from controlled low frequencies to extended high-frequency detail.

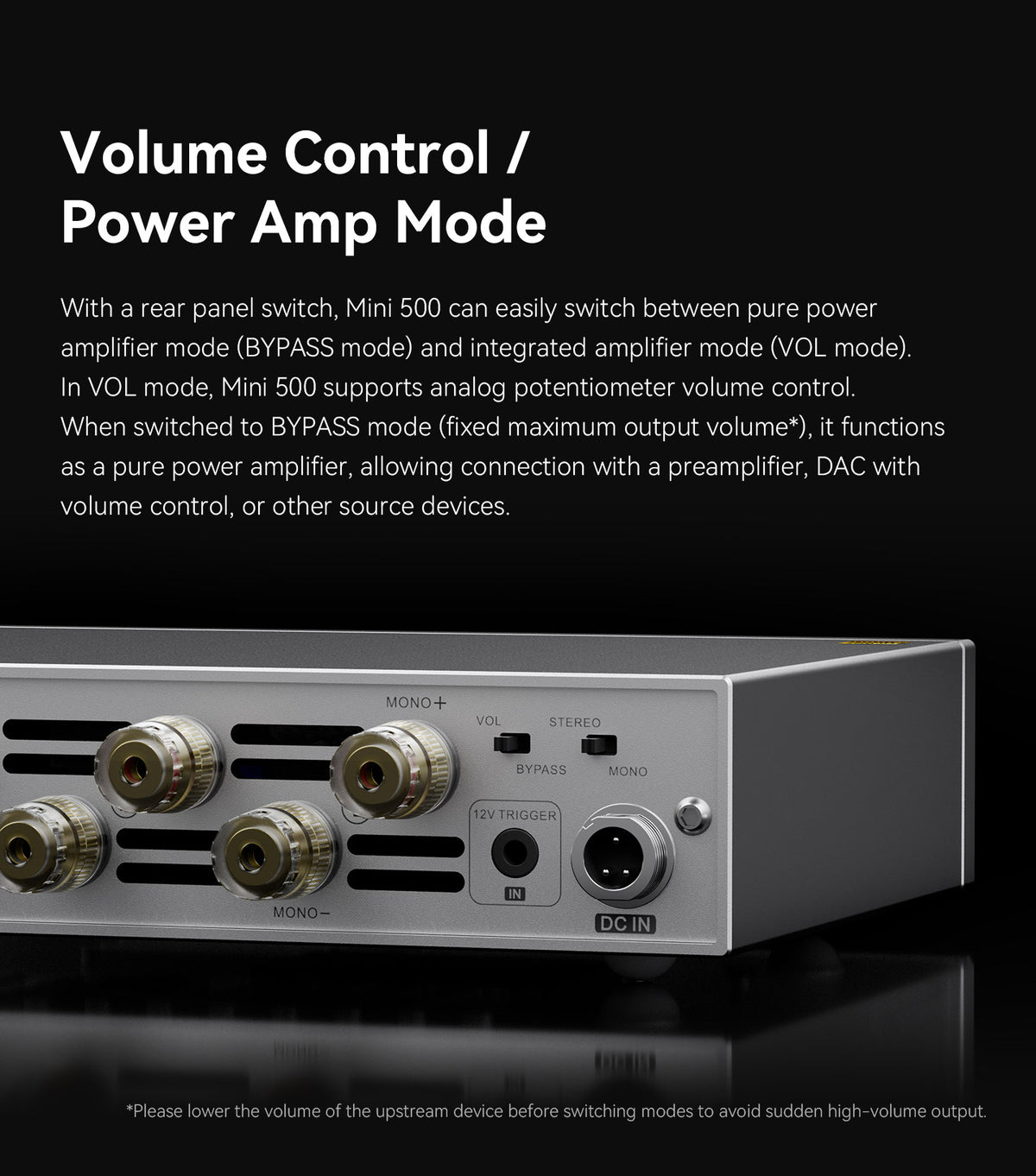

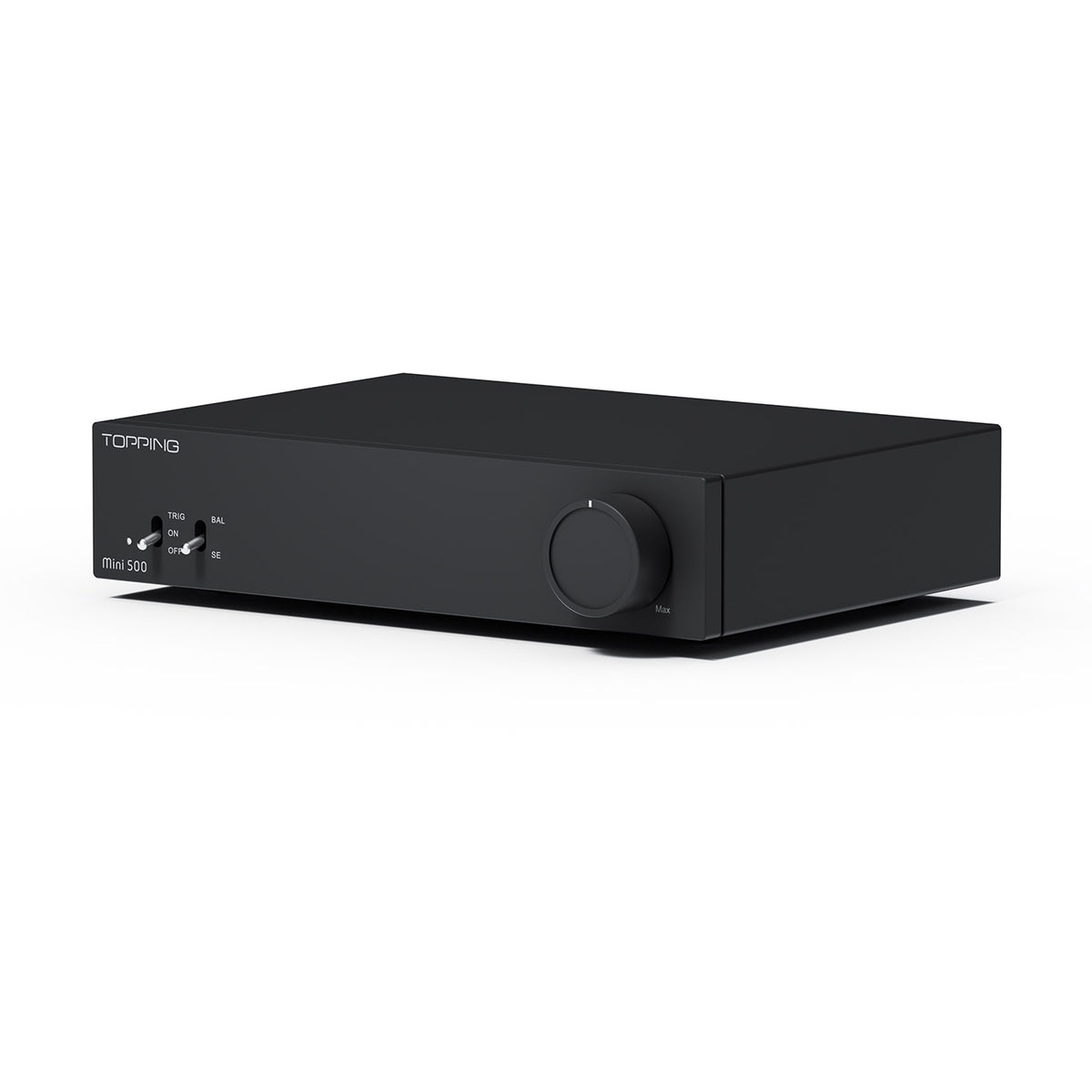

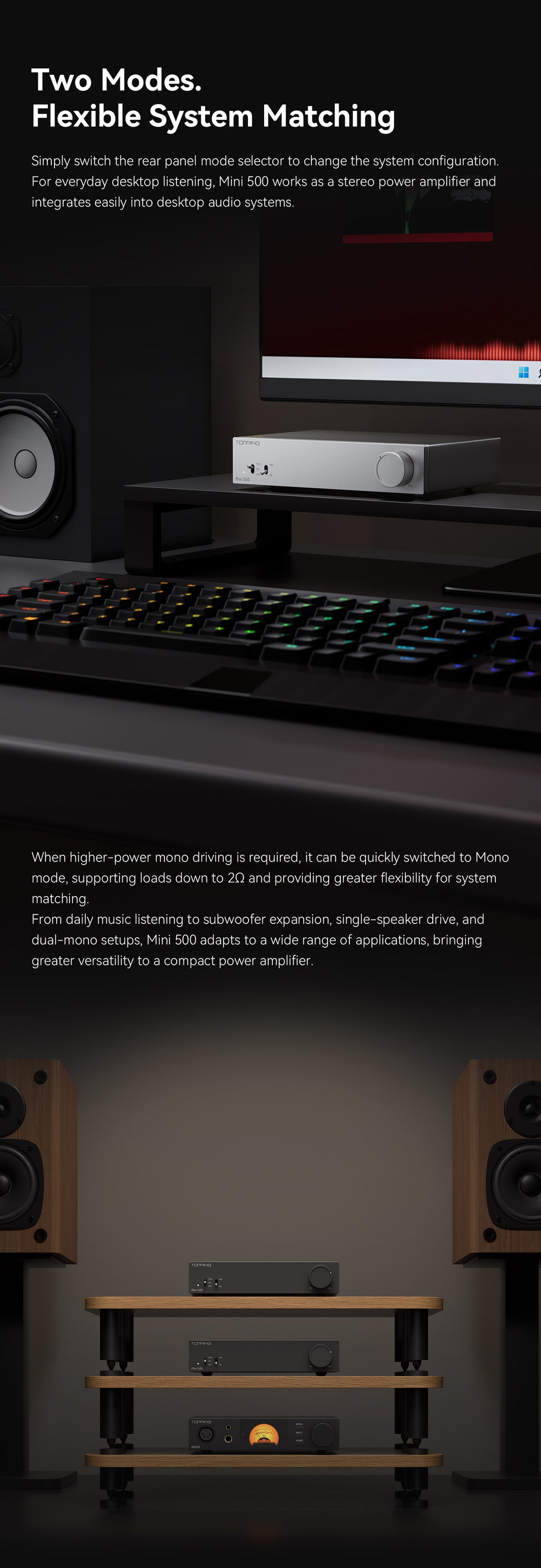

TWO OPERATING MODES FOR FLEXIBLE SYSTEM SETUPS - Select VOL mode to use the built-in analog volume control, or switch to BYPASS mode for fixed maximum output when connecting a DAC with volume control, a preamplifier, or another suitable upstream controller. The front-panel input selector and rear-panel mode switch make system integration straightforward.

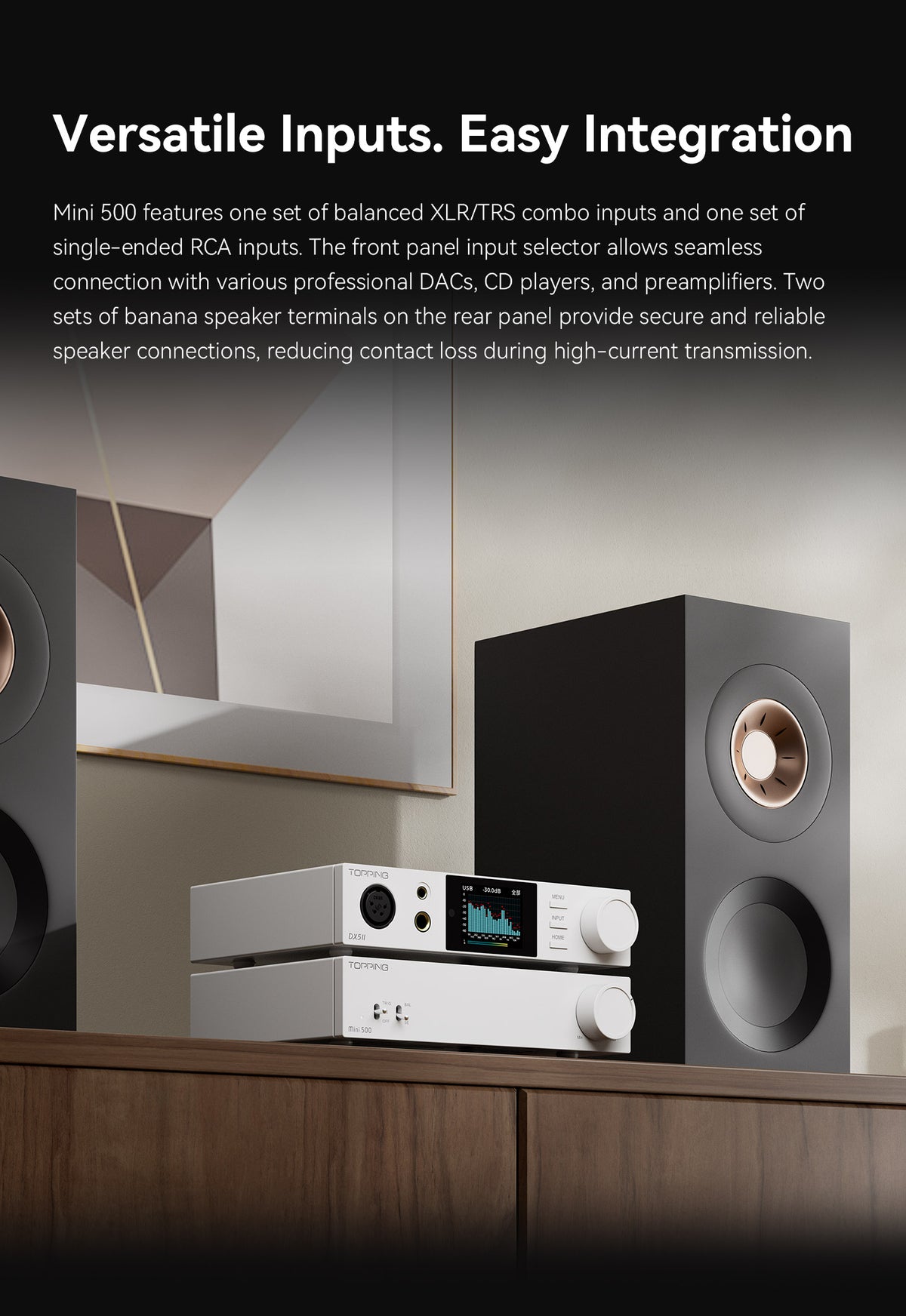

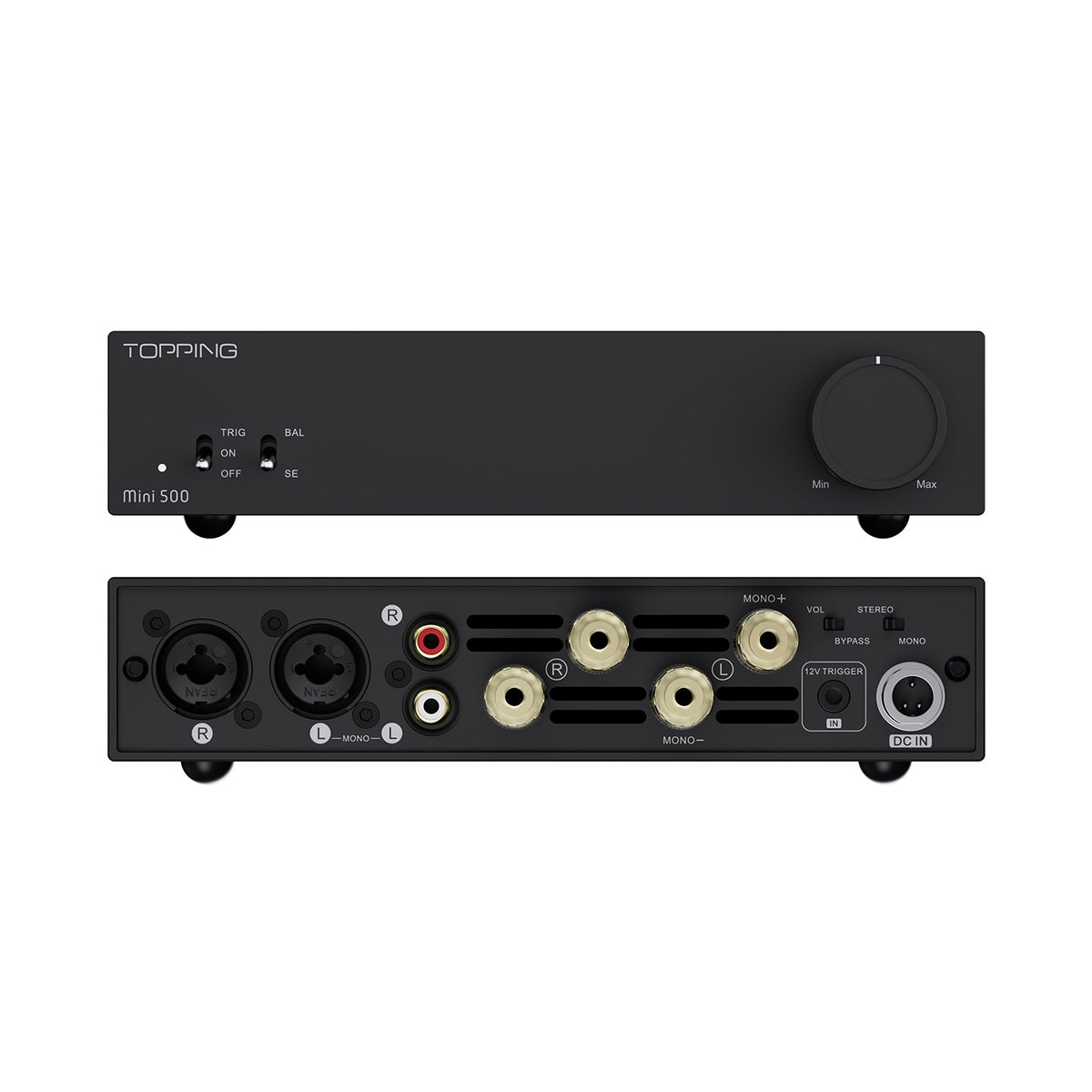

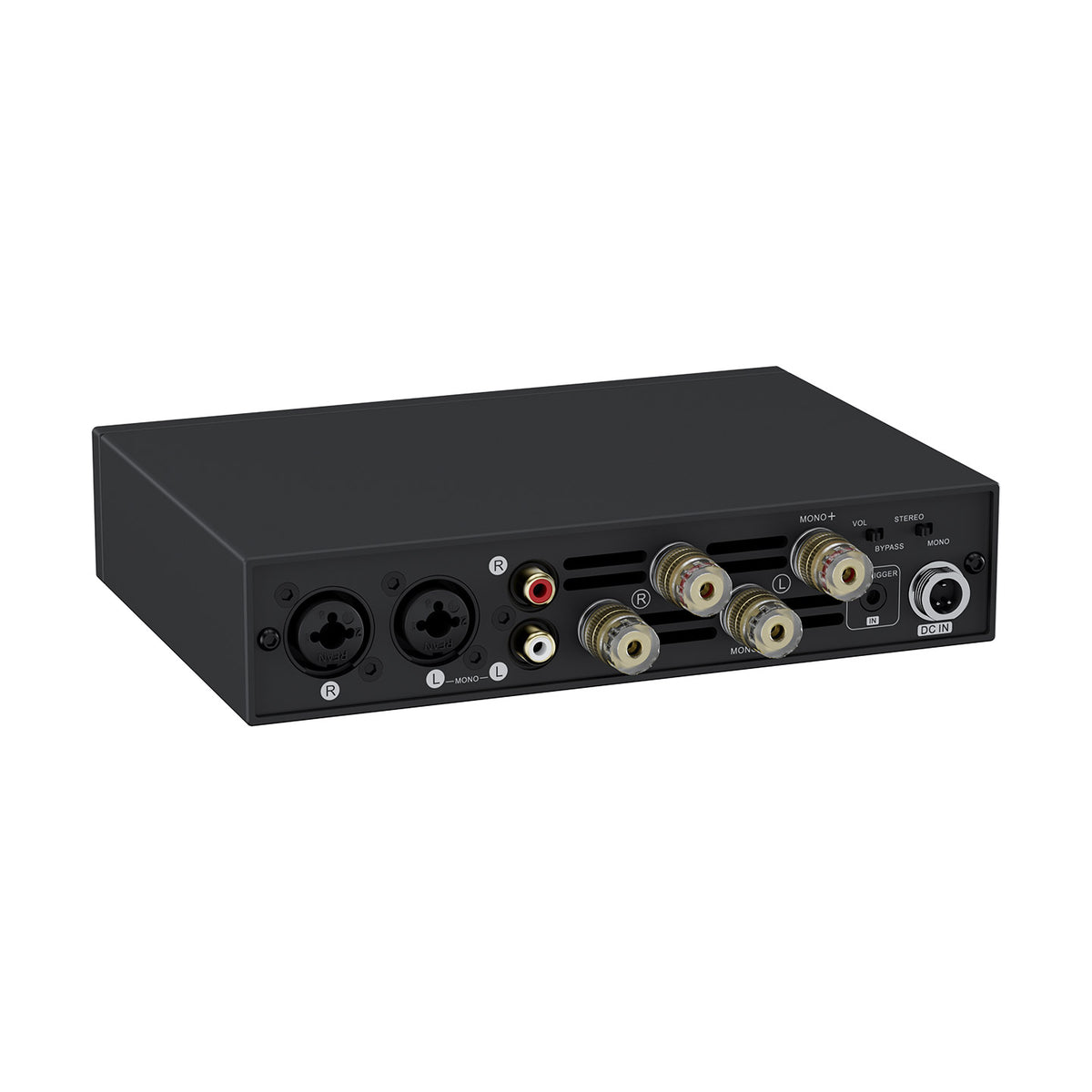

BALANCED XLR/TRS AND RCA INPUTS - Connect compatible DACs, CD players, preamplifiers, and other audio sources through the XLR/TRS combo balanced input or RCA single-ended input. Rear-panel banana-plug-compatible speaker terminals provide secure speaker connections, making the Mini 500 a versatile choice for desktop hi-fi and compact home audio systems.

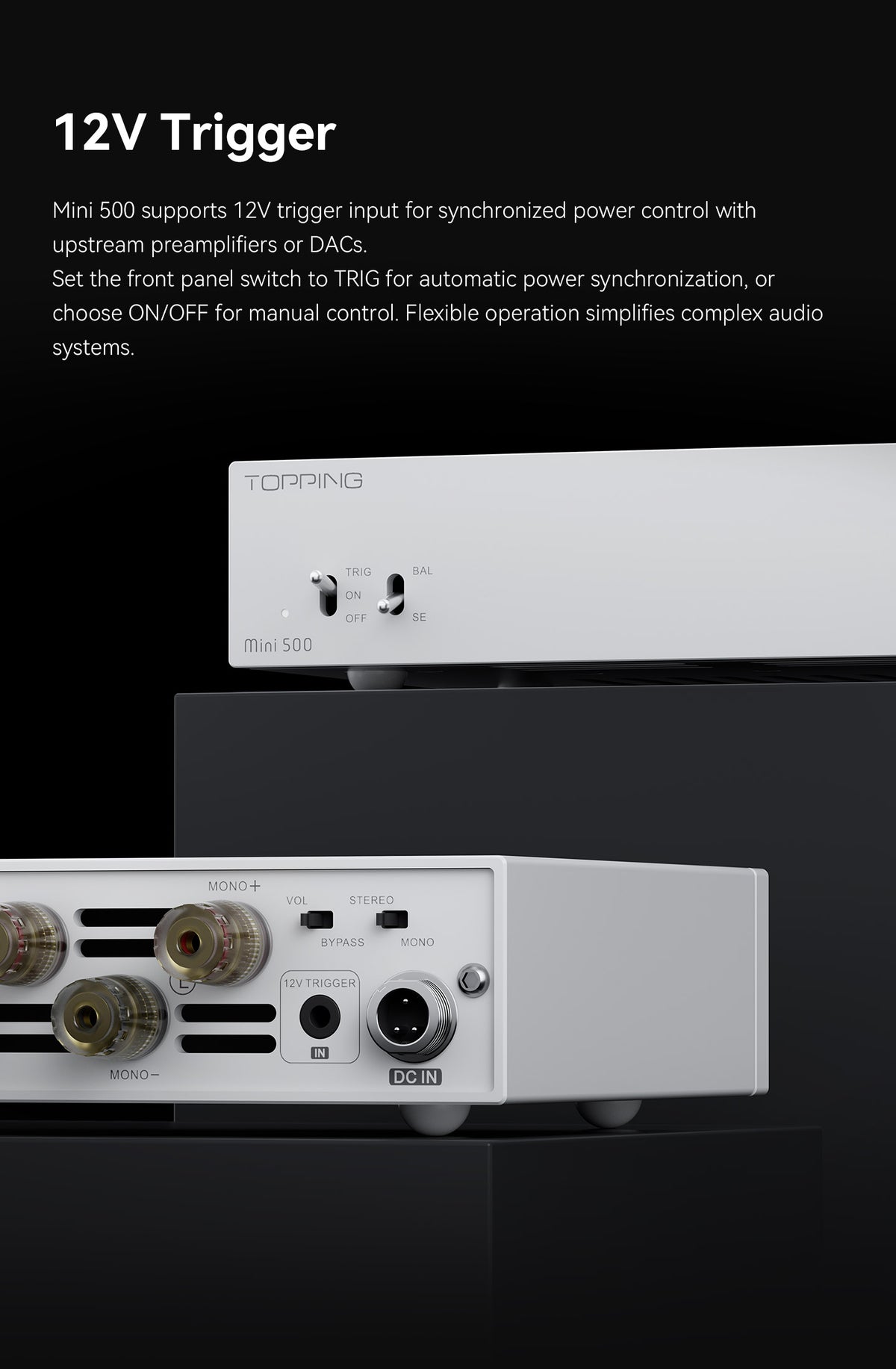

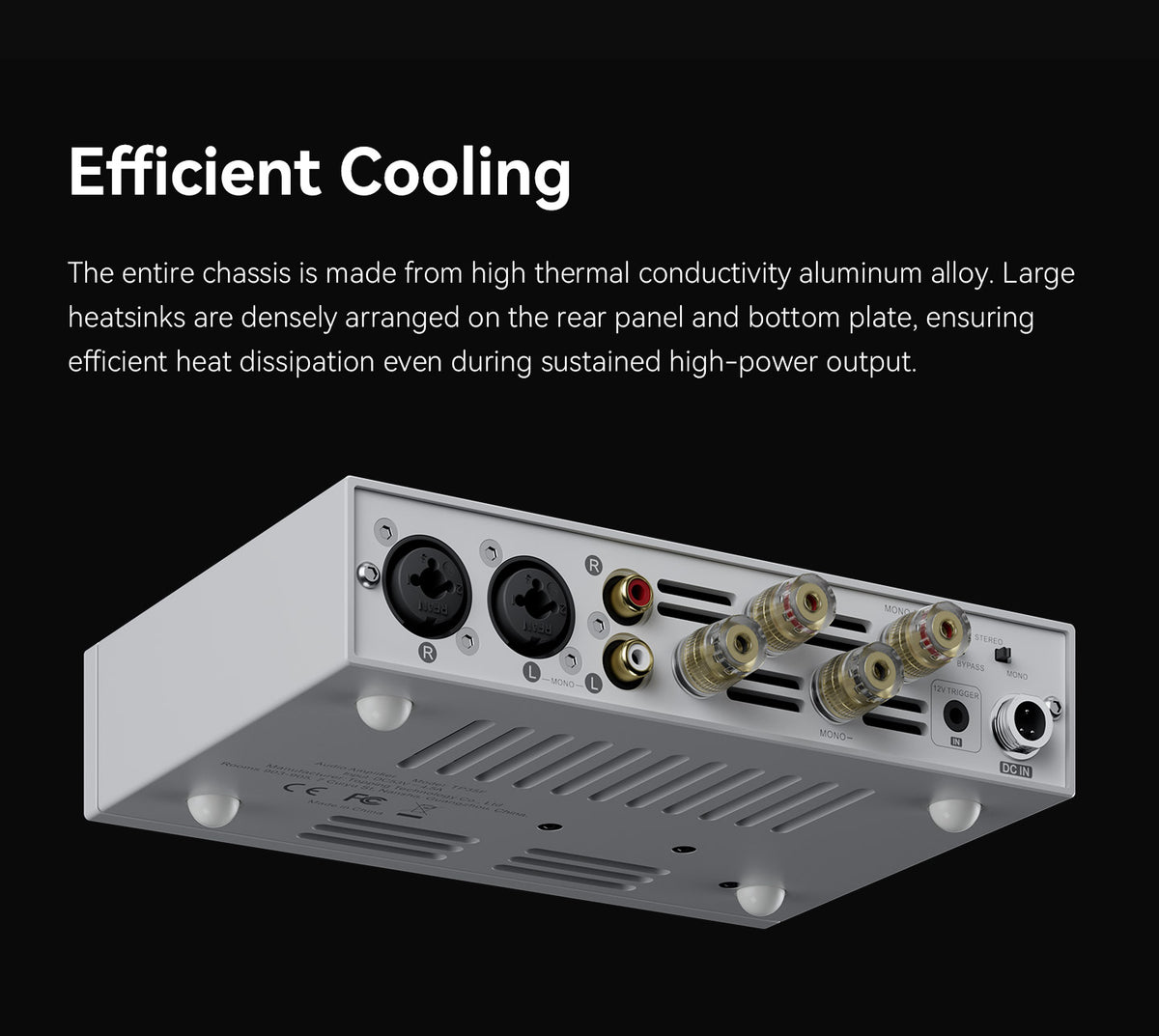

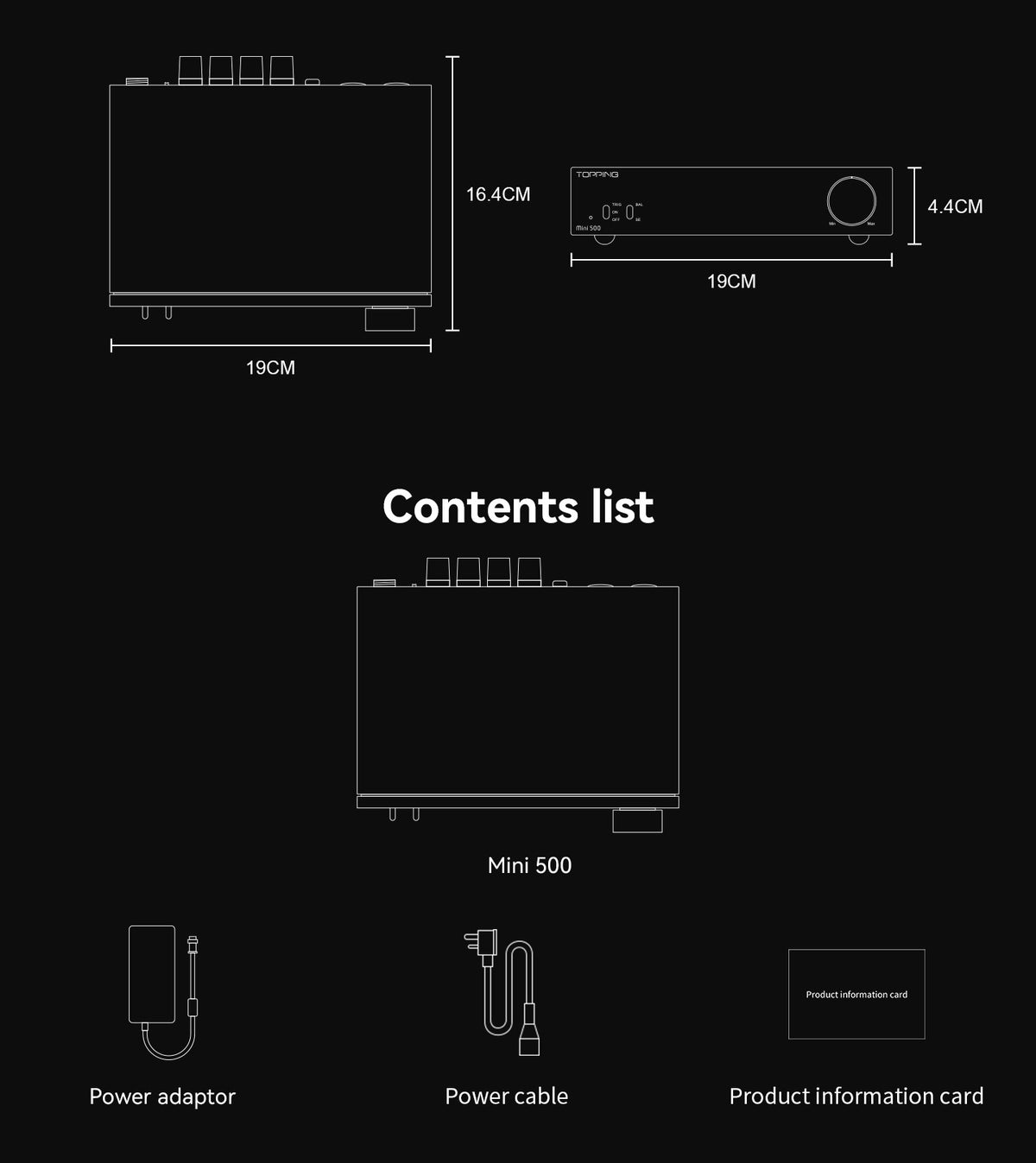

EFFICIENT COOLING AND 12V TRIGGER CONTROL - The compact 1,090g aluminum chassis features high-thermal-conductivity construction and integrated heatsinks to help manage heat during high-power operation. A 12V trigger input enables synchronized power control with compatible upstream equipment, while the selectable TRIG and ON/OFF settings offer convenient system operation.
